Slip rings and split rings are critical components in electromechanical systems, but they serve different purposes and are used in distinct applications. Slip rings are used to transfer electrical power and signals from a stationary to a rotating structure, ensuring continuous connectivity in devices such as wind turbines and medical imaging equipment. Split rings, or commutators, are typically found in DC motors and generators, where they periodically reverse the direction of current. Understanding the differences between these components is crucial for selecting the appropriate solution for specific applications. Custom slip rings, in particular, offer tailored solutions that enhance performance and reliability in complex and high-demand environments.
What are Slip Rings?
Slip rings are integral components in many electromechanical systems, providing a crucial function that allows for the continuous transfer of electrical power and signals from stationary to rotating structures. Their design and operation are fundamental to ensuring that these systems can perform reliably and efficiently without interruption.
Definition and Basic Function of Slip Rings

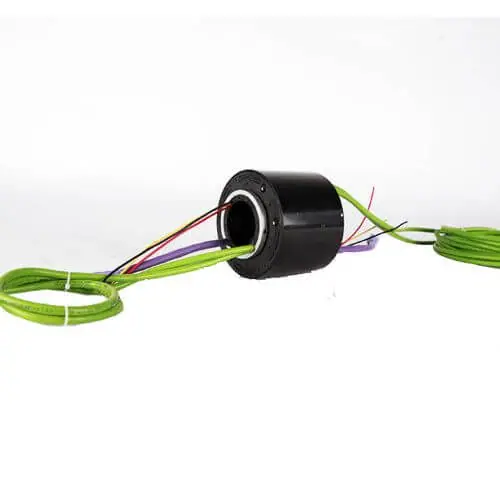

A slip ring, also known as a rotary electrical interface, collector, swivel, or electrical rotary joint, is composed of a set of stationary brushes (or contact points) and a set of rotating rings. The rings are typically made from conductive materials such as copper or brass, while the brushes are often made from graphite or precious metals. As the rotating component turns, the brushes maintain contact with the rings, allowing electrical currents and signals to pass through seamlessly.
The primary function of a slip ring is to transmit electrical power and data across a rotating interface, ensuring continuous electrical connectivity. This mechanism is essential in applications where rotation is a regular part of the operation, and where using traditional cabling would result in wear, twisting, and eventual failure. Slip rings allow for smooth and uninterrupted operation, reducing maintenance needs and increasing the lifespan of the equipment they are used in.
Common Applications in Equipment
Slip rings are versatile components used across various industries, providing reliable solutions for systems that require rotation. Here are some common applications where slip rings are indispensable:
1.Marine and Offshore Equipment
Slip rings are used in marine and offshore applications, such as winches and cranes on ships. These applications require robust and reliable electrical connections to handle the harsh marine environment.
Winches and Cranes: Slip rings provide the necessary power and control signals for the operation of winches and cranes.
Environmental Resistance: They are designed to withstand harsh marine conditions, ensuring reliable performance.
2.Wind Turbines
In wind turbines, slip rings are used to transfer power from the rotating blades to the stationary parts of the system. The continuous rotation of the turbine blades generates electrical power that needs to be transferred efficiently. Slip rings facilitate this power transfer, ensuring the turbine operates effectively.
Power Transmission: Slip rings ensure that the generated power is efficiently transferred to the grid.
Signal Transmission: They also carry control signals for monitoring and adjusting the turbine’s performance.
3.Medical Imaging Equipment
Medical imaging equipment, such as CT scanners and MRI machines, relies on slip rings for their operation. These devices require continuous rotation to capture detailed images. Slip rings provide the necessary electrical connections for power and data transfer during rotation, ensuring high-quality imaging.
Continuous Rotation: Slip rings allow for the uninterrupted rotation of imaging components.
Reliable Data Transfer: They ensure stable and accurate data transmission, which is crucial for precise diagnostics.
4.Industrial Machinery
Slip rings are widely used in various industrial machinery, including packaging machines, rotary tables, and robotic arms. These applications require the transfer of power and control signals to rotating parts, which slip rings efficiently provide.
Enhanced Efficiency: Slip rings improve the functionality and efficiency of industrial machines.
Versatility: They can be customized to handle different power levels and signal types, making them suitable for diverse industrial applications.
5.Aerospace and Defense
In aerospace and defense, slip rings are used in systems such as radar antennas and satellite communication devices. These systems require precise and reliable transmission of signals and power in rotating mechanisms. Slip rings ensure continuous operation in these critical applications.
Radar Systems: Slip rings enable the continuous rotation of radar antennas, essential for accurate tracking and surveillance.
Satellite Communications: They facilitate power and data transfer in satellite systems, ensuring reliable communication.
6.Capsule Slip Ring Applications

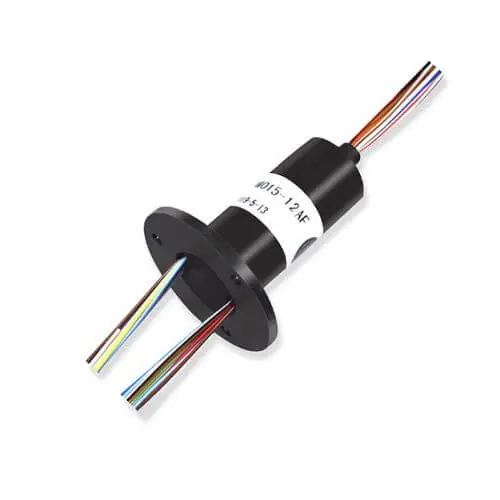

The capsule slip ring is a compact version of the traditional slip ring, designed for applications where space is limited but high performance is required. Capsule slip rings are used in medical devices, small robots, and precision instruments. Their compact design allows them to be integrated into tight spaces without compromising on functionality, providing reliable electrical connections for power and data transmission.
Medical Devices: Capsule slip rings are ideal for portable and compact medical devices requiring reliable electrical connections.
Robotics: They enable precise control and power transmission in small robotic systems, enhancing performance and versatility.
7.Entertainment and Stage Lighting
In the entertainment industry, slip rings are used in rotating stages and lighting systems. They provide continuous electrical connections for power and control signals, allowing for dynamic and flexible stage designs.
Rotating Stages: Slip rings enable stages to rotate smoothly while maintaining electrical connections for lighting and sound equipment.
Stage Lighting: They ensure that stage lights can be moved and rotated freely, enhancing the visual effects of performances.
What are Split Rings?
Split rings, also known as commutators, are essential components in various electromechanical systems, particularly in devices that convert alternating current (AC) to direct current (DC) or vice versa. They play a critical role in ensuring the smooth operation of motors and generators, providing the necessary electrical connections to achieve consistent performance.
Definition and Basic Function of Split Rings (Commutators)
A split ring, or commutator, consists of a cylindrical structure that is segmented into multiple sections, typically made of copper. These sections are insulated from each other and mounted on the rotating shaft of a motor or generator. Brushes made of carbon or other conductive materials are positioned to make contact with the rotating commutator segments.
The basic function of a split ring is to periodically reverse the direction of current flow within the armature windings of a DC motor or generator. This reversal is crucial for maintaining a unidirectional torque in motors and a steady DC output in generators.
In a DC motor, as the armature rotates, the split ring commutator switches the current direction every half turn. This switching ensures that the torque generated by the motor remains in a single direction, allowing the motor to spin continuously. In a DC generator, the split ring works similarly to convert the alternating current generated in the armature windings into a direct current output.
Common Applications
Split rings are widely used in various applications where precise control of current direction is necessary. Here are some common applications of split rings:
1.DC Motors
DC motors are one of the most common applications of split rings. These motors are used in a variety of settings, from small household appliances to large industrial machinery. The split ring commutator is essential in these motors to maintain continuous rotation by reversing the current direction in the armature windings.
Household Appliances: DC motors are found in vacuum cleaners, electric drills, and other household tools. The split ring ensures that these devices operate smoothly and efficiently.
Industrial Equipment: In industrial settings, DC motors power conveyor belts, hoists, and other machinery. The split ring allows for precise control over motor speed and torque, enhancing productivity and safety.
2.DC Generators
Split rings are also crucial in DC generators, where they convert the alternating current induced in the armature windings into a direct current output. These generators are used in various applications, including power generation and backup power systems.
Power Plants: DC generators in power plants use split rings to produce a stable DC output, which can then be converted to AC for distribution or used directly in DC applications.
Emergency Power Systems: In backup power systems, DC generators provide reliable power during outages. The split ring ensures a consistent and steady DC output, critical for emergency power supplies.
3.Electric Vehicles
Electric vehicles (EVs) often use DC motors with split rings to drive the wheels. These motors provide the necessary torque and speed control for efficient vehicle operation. The split ring commutator plays a vital role in maintaining the performance and reliability of the EV’s propulsion system.
Electric Cars: In electric cars, DC motors with split rings offer high efficiency and precise control over acceleration and braking. This contributes to the overall performance and range of the vehicle.
Electric Buses and Trucks: Larger EVs, such as buses and trucks, also benefit from the use of DC motors with split rings. These vehicles require robust and reliable motors to handle heavier loads and longer distances.
4.Traction Systems
Split rings are used in traction systems, such as those found in trains and trams. These systems rely on DC motors to provide the necessary torque for propulsion. The split ring commutator ensures smooth and continuous operation, essential for maintaining speed and stability in these transportation systems.
Trains: DC traction motors with split rings power electric trains, providing reliable performance for passenger and freight transport.
Trams: In urban areas, trams use DC motors with split rings to navigate through city streets efficiently. The split ring allows for precise control over speed and direction, enhancing the safety and reliability of tram systems.
5.Portable Devices
Many portable devices, such as power tools and handheld gadgets, use small DC motors with split rings. These motors provide the necessary power and control for various functions, making them ideal for portable applications.
Power Tools: Drills, saws, and other power tools rely on DC motors with split rings to deliver high torque and variable speed control. The split ring ensures consistent performance and reliability, even under demanding conditions.
Handheld Gadgets: Devices like electric shavers and toothbrushes use small DC motors with split rings to achieve smooth and efficient operation. The split ring allows these gadgets to maintain consistent performance over time.
6.Ethernet Slip Rings Integration
While split rings are primarily associated with DC motors and generators, modern applications sometimes require integrating data transmission capabilities, such as Ethernet slip rings. Ethernet slip rings enable the transfer of high-speed data and power through the same rotating interface, making them ideal for advanced electromechanical systems that need both robust power transmission and reliable data communication.
Robotic Systems: In advanced robotic systems, integrating Ethernet slip rings with split rings can provide both the necessary power and high-speed data communication. This integration enhances the robot’s functionality and allows for more complex operations.
Medical Devices: In medical imaging equipment, combining Ethernet slip rings with traditional split rings can ensure continuous power supply while also transmitting critical imaging data. This combination improves the performance and reliability of medical devices.
Split rings, or commutators, are essential components in various electromechanical systems, particularly in DC motors and generators. Their primary function is to reverse the direction of current flow within the armature windings, ensuring continuous operation and consistent performance. Common applications include household appliances, industrial equipment, electric vehicles, traction systems, and portable devices. The integration of Ethernet slip rings with split rings represents a modern advancement, enabling the simultaneous transmission of power and high-speed data. Understanding the definition, basic function, and common applications of split rings is crucial for selecting the right component to meet specific needs in diverse industries.
Key Differences Between Slip Rings and Split Rings
Slip rings and split rings, also known as commutators, are both essential components in electromechanical systems that involve rotating parts. Despite their similarities in enabling electrical connectivity in rotating systems, they serve distinct functions and are used in different types of applications. Understanding the key differences between slip rings and split rings is crucial for selecting the appropriate component for specific applications.
Continuous Connection vs. Periodic Current Reversal
The primary difference between slip rings and split rings lies in how they handle electrical connections and current flow.
1.Slip Rings: Continuous Connection
Slip rings are designed to provide a continuous electrical connection between stationary and rotating parts. They consist of conductive rings mounted on the rotating shaft and brushes that remain stationary. As the shaft rotates, the brushes maintain constant contact with the rings, allowing for uninterrupted transmission of electrical power and signals.
Functionality: The primary function of slip rings is to enable the continuous transfer of electrical power and data across a rotating interface. This is essential in applications where the rotation is a regular and necessary part of the operation, such as in wind turbines, CT scanners, and rotary tables.
Applications: Slip rings are commonly used in systems where continuous rotation is required without interruptions in electrical connectivity. Examples include:
Wind Turbines: Slip rings transmit power from the rotating blades to the stationary parts of the system.
Medical Imaging Equipment: In CT scanners, slip rings enable continuous rotation of the imaging components while maintaining power and data connections.
Robotics: Slip rings are used in robotic arms to transmit control signals and power to the end effectors.
Capsule Slip Rings: These compact versions of traditional slip rings are used in applications where space is limited, such as in small medical devices and precision instruments.
2.Split Rings (Commutators): Periodic Current Reversal
Split rings, or commutators, are designed to periodically reverse the direction of current flow within the armature windings of a DC motor or generator. This reversal is necessary to maintain unidirectional torque in motors and a steady DC output in generators. Split rings consist of a cylindrical structure divided into multiple segments, with brushes that make contact with the rotating commutator segments.
Functionality: The primary function of split rings is to reverse the current direction every half turn of the rotating shaft. This ensures that the torque generated by a DC motor remains in one direction, allowing for continuous rotation. In DC generators, split rings convert the alternating current induced in the armature windings into direct current.
Applications: Split rings are used in applications where precise control of current direction is required. Examples include:
DC Motors: Split rings are essential in DC motors for maintaining continuous rotation by periodically reversing the current direction.
DC Generators: In DC generators, split rings convert AC generated in the armature windings into DC output.
Electric Vehicles: DC motors with split rings provide efficient and reliable propulsion for electric cars and buses.
Traction Systems: Split rings are used in traction systems such as trains and trams to ensure smooth and continuous operation.
Detailed Comparison of Continuous Connection vs. Periodic Current Reversal
1.Continuous Connection in Slip Rings
Uninterrupted Operation: Slip rings provide a seamless and continuous electrical connection, which is crucial for applications requiring constant rotation and power transmission.
Data Transmission: Slip rings can also transmit data signals, making them suitable for modern applications like Ethernet slip rings, which support high-speed data communication in rotating systems.
Versatility: Slip rings are versatile and can be customized to handle various power levels and signal types. They are used in diverse applications, from wind turbines to medical devices.
2.Periodic Current Reversal in Split Rings
Directional Control: Split rings ensure that the current direction in DC motors and generators is periodically reversed, maintaining unidirectional torque and steady DC output.
Precise Timing: The timing of the current reversal is critical for the proper functioning of DC motors and generators. Split rings are designed to achieve this timing accurately.
Specialized Use: Split rings are specialized for use in DC motors and generators, where precise control over current direction is necessary for efficient operation.
Impact on System Design and Performance
1.System Design Considerations
Slip Rings: When designing systems that incorporate slip rings, engineers must consider factors such as rotational speed, electrical load, and data transmission requirements. The design must ensure that the slip rings can handle continuous operation without excessive wear or electrical noise.
Split Rings: In systems using split rings, the design must account for the periodic reversal of current and its impact on the motor or generator’s performance. This includes ensuring that the brushes and commutator segments are designed for minimal wear and efficient current transfer.
2.Performance and Maintenance
Slip Rings: Slip rings generally require less maintenance compared to split rings, as they do not involve the continuous breaking and making of electrical contacts. However, they must be designed to minimize friction and wear to ensure long-term reliability.
Split Rings: Split rings typically require more maintenance due to the wear and tear on brushes and commutator segments caused by the continuous making and breaking of electrical contacts. Proper maintenance is essential to ensure efficient operation and longevity.
Slip rings and split rings serve distinct functions in electromechanical systems, with slip rings providing continuous electrical connections and split rings enabling periodic current reversal. Understanding these key differences is crucial for selecting the appropriate component for specific applications. Slip rings are ideal for systems requiring uninterrupted rotation and power transmission, such as wind turbines and medical imaging equipment, while split rings are essential for DC motors and generators where precise control over current direction is necessary. The integration of modern technologies, such as Ethernet slip rings, further enhances the versatility and functionality of slip rings, supporting advanced data communication needs in rotating systems.
Mechanical and Electrical Implications
Understanding the mechanical and electrical implications of slip rings and split rings is crucial for optimizing motor performance and efficiency. These components play distinct roles in electromechanical systems, each with unique structural and functional characteristics that influence their application and effectiveness.
Differences in Mechanical Structure and Electrical Function
1.Slip Rings: Continuous Electrical Connection
Mechanical Structure: Slip rings consist of conductive rings mounted on a rotating shaft and stationary brushes that make continuous contact with these rings. The structure is designed to maintain an uninterrupted electrical connection as the shaft rotates. Materials such as copper, brass, or gold are commonly used for the rings to ensure good conductivity and durability.
Electrical Function: The primary function of slip rings is to provide a continuous pathway for electrical power and signals between stationary and rotating parts. This is essential in applications where rotation is constant, such as in wind turbines and medical imaging equipment. Slip rings enable the transfer of various types of signals, including analog, digital, and power signals, without interruption.
Capsule Slip Rings: These are compact versions of traditional slip rings, designed for applications with limited space. They maintain the same continuous connection capability but are optimized for size and weight constraints, making them ideal for small, precise applications like medical devices and robotics.
2.Split Rings (Commutators): Periodic Current Reversal
Mechanical Structure: Split rings, or commutators, are segmented cylindrical structures mounted on the rotating shaft of DC motors or generators. Each segment is insulated from the others and is connected to the armature windings. Carbon brushes make contact with the rotating segments, allowing electrical current to flow through the armature.
Electrical Function: The primary function of split rings is to periodically reverse the direction of current flow within the armature windings of DC motors and generators. This reversal occurs each half turn of the armature, ensuring that the generated torque in motors or the output current in generators remains unidirectional. This mechanism is critical for the operation of DC motors and generators, providing consistent performance and control.
Impact on Motor Performance and Efficiency
1.Slip Rings: Enhancing Performance and Versatility
Motor Performance: In AC motors, slip rings are used in wound rotor motors to introduce external resistance into the rotor circuit. This capability allows for better control over the starting torque and speed of the motor. By adjusting the resistance, operators can optimize motor performance for specific applications, such as lifting heavy loads in cranes or precise speed control in conveyors.
Efficiency: Slip rings contribute to the overall efficiency of motors by enabling smooth and continuous operation. They reduce mechanical wear and tear by eliminating the need for twisting cables, which can lead to cable damage and maintenance issues. Additionally, slip rings ensure that electrical signals are transmitted without interruption, maintaining the efficiency of systems that rely on continuous data and power transfer.
Applications in Data Transfer: Modern applications, such as Ethernet slip rings, highlight the versatility of slip rings. Ethernet slip rings support high-speed data transmission, enabling advanced communication in rotating systems like robotic arms and surveillance equipment. This capability enhances system efficiency by ensuring reliable and fast data transfer.
2.Split Rings: Ensuring Consistent and Controlled Operation
Motor Performance: Split rings are integral to the operation of DC motors, ensuring that the current direction in the armature windings is periodically reversed. This periodic reversal is crucial for maintaining a consistent and unidirectional torque, allowing the motor to spin continuously. In DC generators, split rings convert the AC generated in the armature into a stable DC output, essential for applications requiring a steady current supply.
Efficiency: While split rings provide critical functionality for DC motors and generators, they do introduce some inefficiencies due to mechanical wear. The continuous making and breaking of electrical contacts between the brushes and commutator segments cause wear over time, necessitating regular maintenance. However, this design ensures precise control over motor performance, which is vital for applications where directional control and consistent torque are necessary, such as in electric vehicles and industrial machinery.
Specialized Applications: Split rings are specifically designed for use in systems where precise control over current direction is required. This includes applications in electric vehicles, where DC motors with split rings provide efficient and reliable propulsion, and in power tools, where they ensure consistent performance under varying load conditions.
The mechanical and electrical implications of slip rings and split rings are significant, influencing the performance, efficiency, and suitability of these components for various applications. Slip rings provide a continuous electrical connection, enhancing the performance and versatility of AC motors, wind turbines, medical imaging equipment, and modern data transfer systems like Ethernet slip rings. Their ability to transmit power and signals seamlessly makes them indispensable in applications requiring constant rotation and reliability.
On the other hand, split rings ensure the periodic reversal of current in DC motors and generators, maintaining consistent torque and a steady DC output. While they introduce some mechanical wear, their precise control over current direction is crucial for applications in electric vehicles, industrial machinery, and power tools.
Understanding these differences is essential for selecting the right component for specific applications, optimizing motor performance, and ensuring the efficiency and reliability of electromechanical systems.
